The equipment is used a termination point for the feeder cable to connect with drop cable in FTTx communication network system.The fiber splicing,splitting,distribution can be done in this box,and meanwhile it provides solid protection and management for the FTTx network building.
| Specification: |
| Working temperature:-40℃~ +85℃ |
| Storage temperature:-25℃~ +40℃ |
| Relative humidity:≤85 (+30℃) |
| Atmospheric pressure:70 ~ 106 kpa |

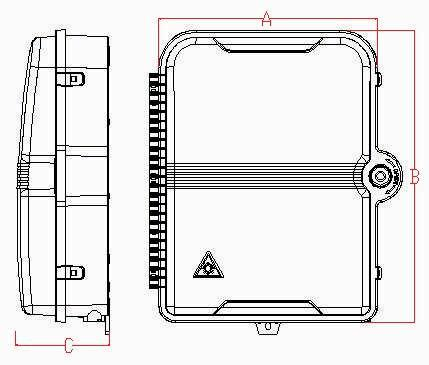

Structural drawing:

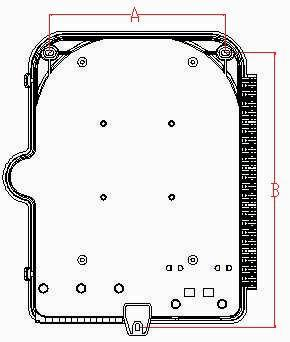

Pic1:Box Size Pic2:Installation Size
| AxBxC(mm) | AxB(mm) | Splitter | ||||
| ACF005-12 | 225*200*65 | Grey | 12 | 190*298 | No | |
| ACF005-16 | 320*240*100 | Grey | 16 | 190*298 | Yes | |
| ACF005-24 | 320*240*100 | Grey | 24 | 168*210 | No | |

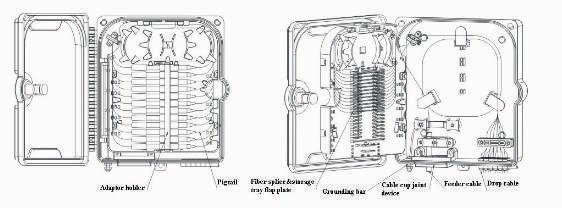

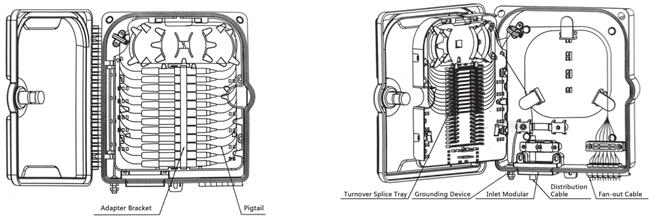

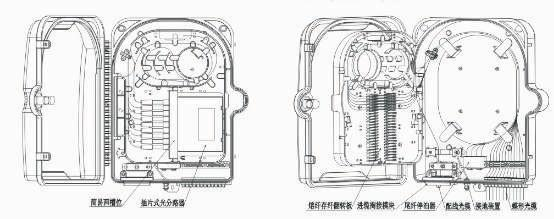

Wiring Diagram:
ACF005-12
ACF005-16
ACF005-24
Installation:
1. Wall-mounted installation
Drill 4 holes over the wall based on the size in table 1,place the expansion bolt Φ7.5*40,place the box
to match up the holes and use bolt to fasten.(Pic 3)

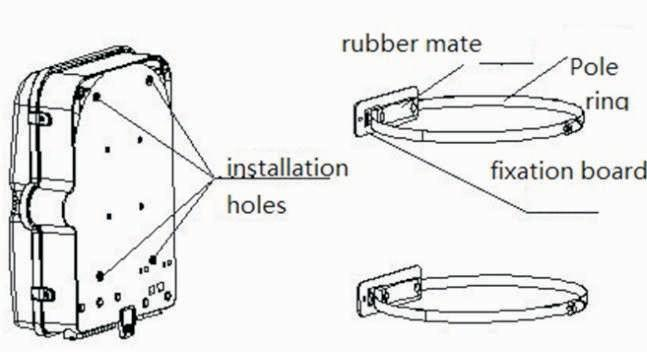

2. Pole-mounted installation
Fix 1 set of the easy pole ring to the telecom pole .(Pic 4)

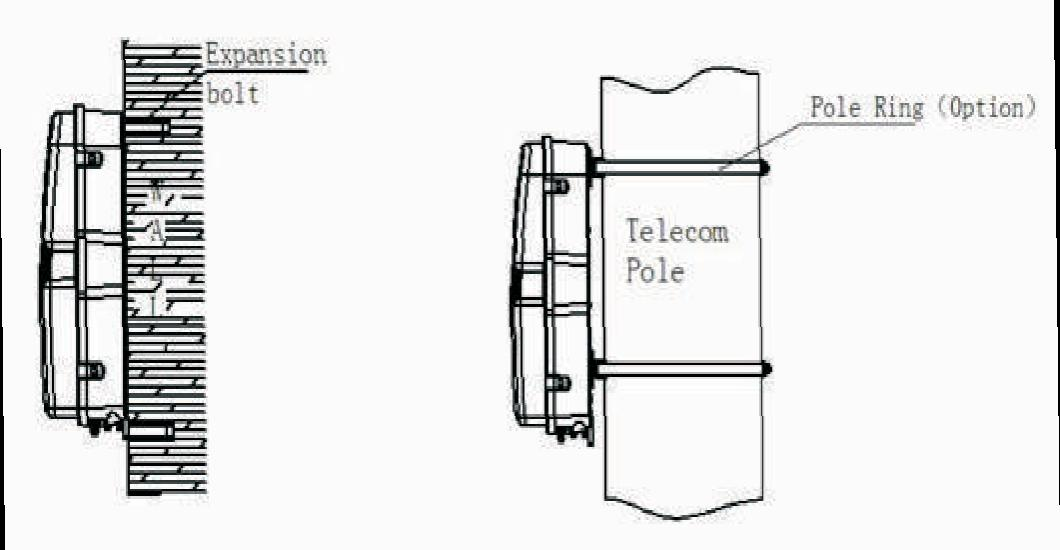

Pic3 Wall mounted Pic4 Pole mounted Pic5 Pole ring installation
installation installation

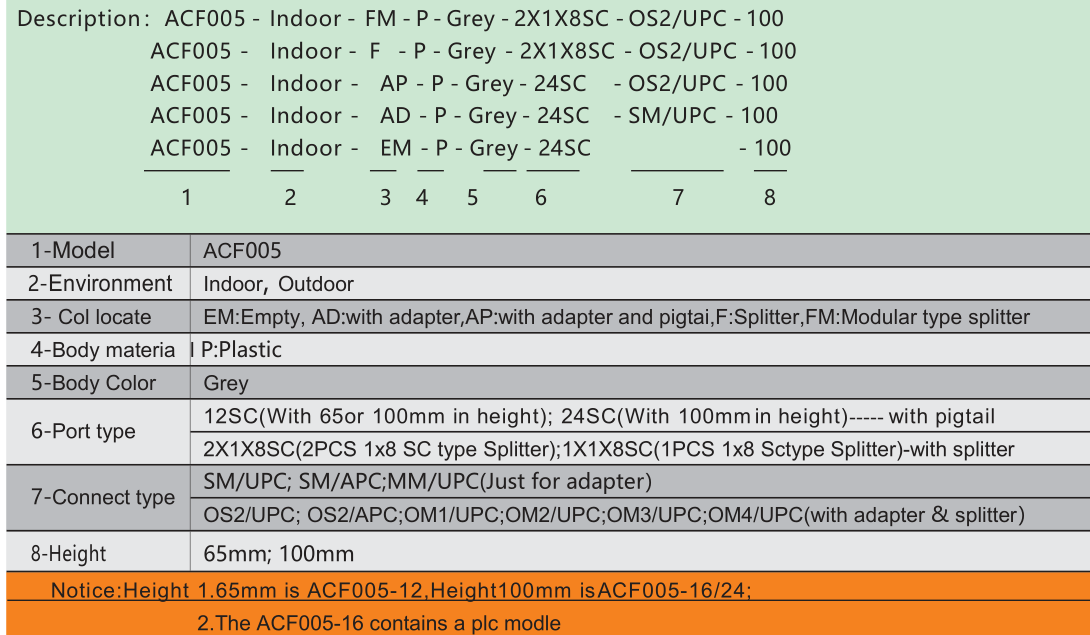

Order information:
Accessories:
| Item | Name | Quantity | Notice |
| Key | 1 pcs | ||
| Users’Manual | 1 Set | ||
| Accrsssories Bag | 1 Set | ||
| Pole mounting accessories | 2 PCS | Optional | |
| Notice:Pole mounting accessories are optional |
|||
Feature:
- Fully closed structure, simple and beautiful shape.
- Adopted high quality PC and ABS material, with a good property of dustproof, waterproof, moisture proof , achieved IP 54 Grade.
- Suitable for SC and LC duplex adapter.
- Flexible splice tray which is convenient for operation and maintaining.
Application:
- Wall and pole mountable(accessories optional),
- suitable for indoor and outdoor use
- Cabinet can be installed by the way of wall- mounted or poled- mounted, suitable for both indoor and outdoor uses.
