Optical cable assembly, DLC/DLC, GYFJH, 2Core. Outdoor Protected Branch Cable
  • Optical cable assembly, DLC/DLC, GYFJH, 2Core. Outdoor Protected Branch Cable
  • Optical cable assembly, DLC/DLC, GYFJH, 2Core. Outdoor Protected Branch Cable
  • Optical cable assembly, DLC/DLC, GYFJH, 2Core. Outdoor Protected Branch Cable
Optical cable assembly, DLC/DLC, GYFJH, 2Core. Outdoor Protected Branch Cable
 Optical cable assembly, DLC/DLC, GYFJH, 2Core. Outdoor Protected Branch Cable



  • Inquiry
  • Back
Product Details

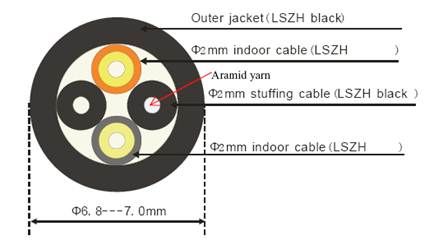

 Structure:



Optical cable assembly, DLC/DLC, GYFJH, 2Core. Outdoor Protected Branch Cable







Cable Parameters:

Fiber Count

Cable Dimension

mm

Cable Weight

kg/km

Tensile

N

Crush

N/100mm

Min. Bend Radius

mm

Range of Temperature



Long Term Short Term Long Term Short Term Dynamic Static
2 7.0 42.3 200 400 1100 2200 20D 10D -30-+70

Note: 1. All the values in the table, which are for reference only, are subject to change without notice;

2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;

3. D is outer diameter of the round cable;









Multimode fiber:







Optical cable assembly, DLC/DLC, GYFJH, 2Core. Outdoor Protected Branch Cable









ITEM PARAMETER
Fiber type 50/125
Core Diameter 50 + 2.5
Core Non-Circularity <=5.0 %
Cladding Diameter 125.0+1.0um
Cladding Non-Circularity <=1.0%
Coating Diameter 245+7
Coating-Cladding Concentricity Error <=12.0um
Coating Non-Circularity <=6.0um
Core-Cladding Concentricity Error <=1.0um
Attenuation 850nm <=2.3
1300nm <=0.6
Numerical Aperture (NA)

0.200 + 0.015



Step( mean to bidirectional measurement) <=0.10 dB
Irregularities Over fiber length and point discontinuity <=0.10 dB
Difference backscatter coefficient (bidirectional measurement) <=0.08 db/km
OFL Bandwidth
(MHz.km)
  OM2
850nm >=700
1300nm =500
Effective Modal Bandwidth@850nm(MHz.km) >=950
Application support distance on OM2
10Gigabit Ethernet SX 850nm(m) 150
Gigabit Ethernet SX 850nm (m) 750
Gigabit Ethernet LX 1300nm (m) 600





Connector Specification:





ITEM PARAMETER
Connector type DLC/UPC
Insertion Loss <=0.3db
Return Loss >=35db
Fiber mode Multi-mode,50/125
Operating wavelength 850nm, 1300nm
Test wavelength 850nm, 1300nm
Repeatability <=0.1
Interchangeability <=0.2dB
Durability <=0.2dB
Fiber Length 1m, 2m….. any length optional.
Length and tolerance 10cm
Operating Temperature -40C ~ +85C
Storage Temperature -40C ~ +85C






Features:



►Good mechanical and environmental characteristics;

►Flame retardant characteristics meet the requirements of relevant standards;

►The mechanical characteristics of jacket meet the requirements of relevant standards;

►Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;

►Meet various requirements of market and clients









Application:



►Mainly used in wireless base station horizontal and vertical cabling

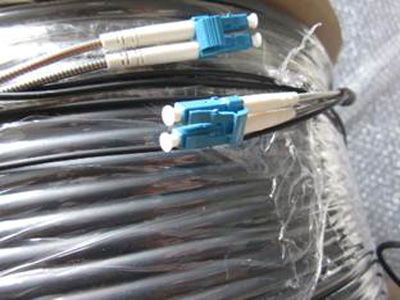

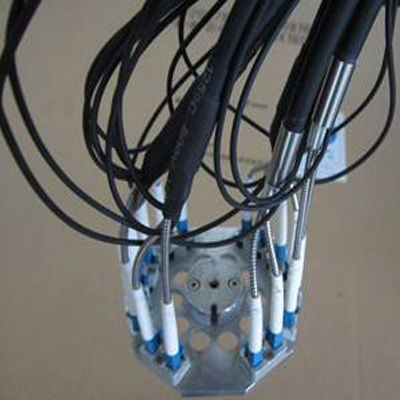

Images of the products:



                   Optical cable assembly, DLC/DLC, GYFJH, 2Core. Outdoor Protected Branch Cable     Optical cable assembly, DLC/DLC, GYFJH, 2Core. Outdoor Protected Branch Cable
