Description
The equipment is used as a termination for the feeder cable to connect with drop cable in FTTX communication network system.The fiber splicing,splitting,distribution can be done in this box,and meanwhile it provides solid protection and management for the FTTX network building.
Specification:
► Enviromental requirement
Working temperature:-40°C-+60°C
Relative humidity:≤85%(+30°C)
Atmospheric pressure: 70Kpa-106Kpa
► Main technical datasheet
Intertion loss:≤0.2dB
UPC return loss:>=50dB
APC return loss:>=60dB
Life of insertion and extraction:>1000 times
► Thuder-proof technical datasheet
The grounding device is isolated with the cabinet,isolation resistance is less than
The withstand voltage between grounding device and cabinet is not less than 3000V(DC)/min, no puncture, no flashove:U >=3000V

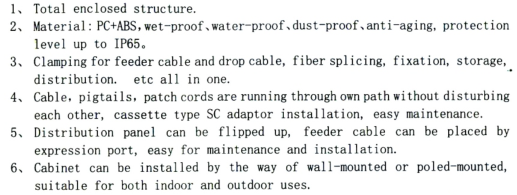

Feature:

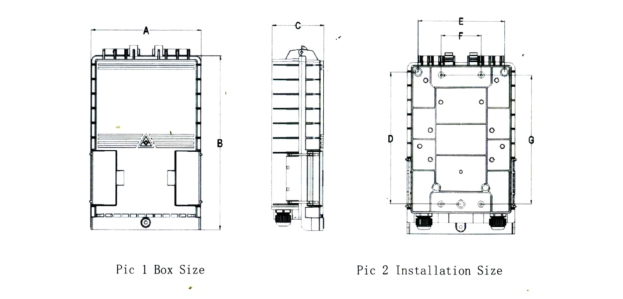

Condiguration table:

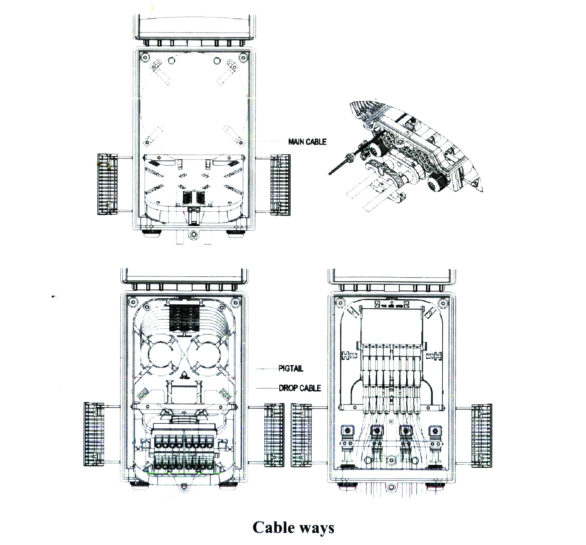

Product inside structure and cable ways:

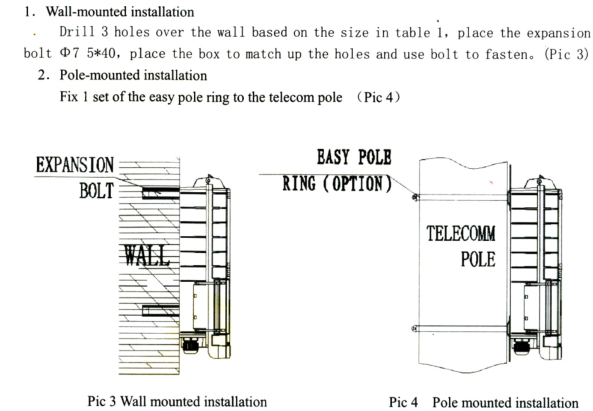

Installation:
Accesories:
1. Instructions*1
2. Key*1
3. Simple hoop*2, back sheet*2(optional)
4. Accesory Bag*1
